Prototypes

We need to test our ideas!
A prototype is a simplified and incomplete models of a design used to:

• explore ideas
• elaborate requirements
• refine specifications
• validate functionality

Why prototypes?

• Designers can understand real-world design requirements
• Designers can visualize, test, and improve design ideas early in the process
• Early usability testing - we can catch issues before investing in full development
• Investing early prevents expensive rework! (Pay less now or more later)
• Prototypes are inexpensive, fast, flexible, so you can do more of them
• More prototypes = More ideas = Better ideas (Quantity breeds quality!)

Idea Selection: Prioritizing ideas for prototyping

1. Define each idea's importance
   • Think about real-world requirements
   • User preference and target user population
   • Feasibility (available hardware, available software, cost)
   • Team skills and resources
2. Rank ideas
3. Pick the tops
   • Number of ideas to pick depends on resources and stage of the project
   • Remember: prototyping is about learning, not perfection

Prototyping methods

1. Phase I - Early Exploration
   • Goal: Understand user needs, test rough ideas
   • Rapid low-fidelity implementation
   • Walk-throughs, storyboards
   • Paper prototypes (sketches, printouts)
2. Phase II – Concept Validation
   • Goal: Test with real users in more realistic settings
   • Rapid prototyping with:
     • Digital mockups (e.g. Figma, Sketch, Adobe XD)
     • Wizard of Oz simulations
     • Clickable or partially interactive UIs
3. Phase III – User Evaluation with Working Systems
   • Goal: Test in more realistic settings
   • Toolkit-based implementation
   • Test with real users in more realistic settings
   • Built with actual UI libraries
   • Larger and larger group of users using the real interface
4. Phase IV – Final Product
   • Goal: Validate and polish
   • Fully functional system
   • Performance, edge case, and full usability testing

Low-Fidelity Prototype

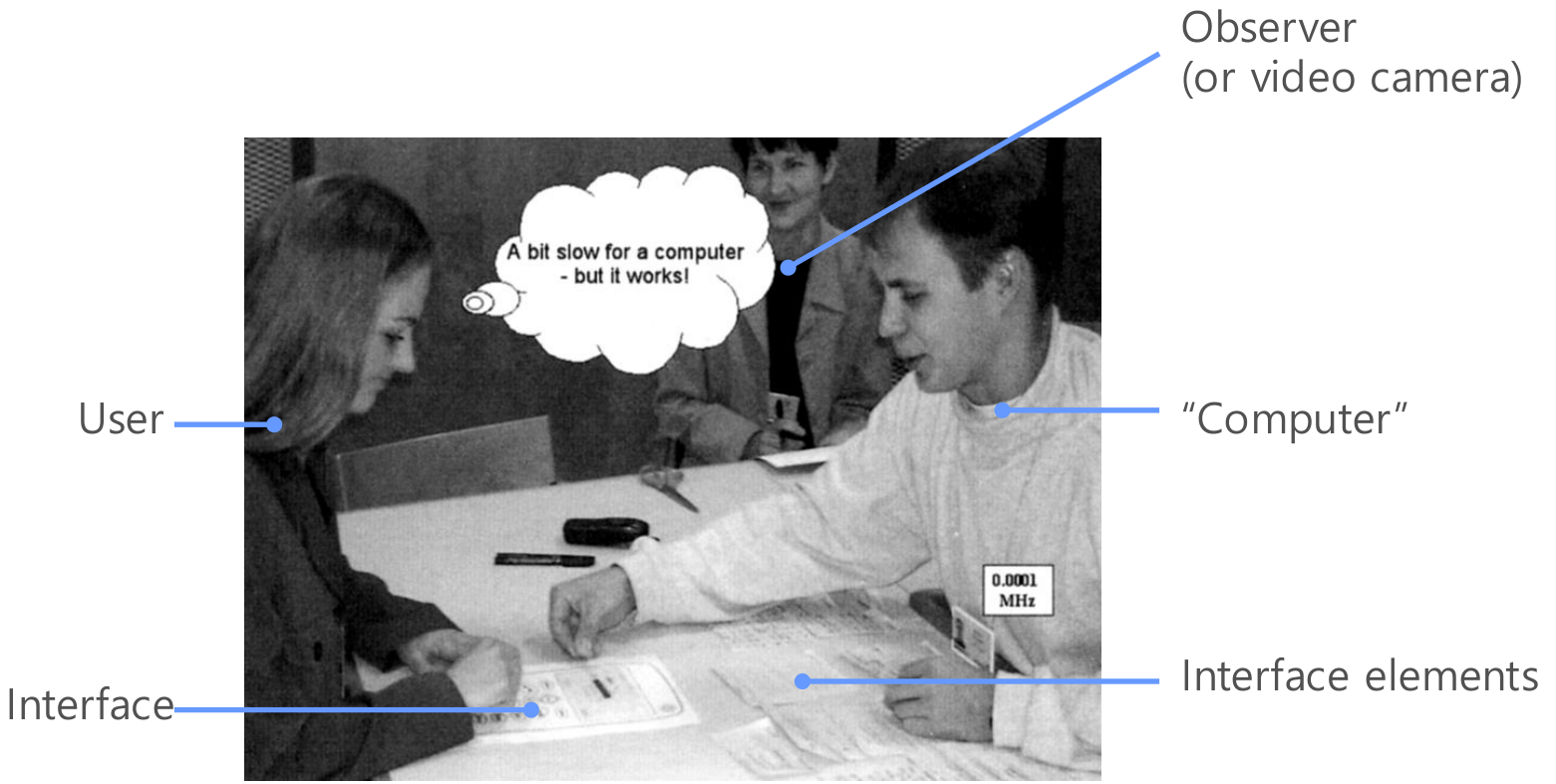

Paper/plastic-based interface simulation...

• User interacts with the paper interface
• A person who act as a computer (usually the designer) manually changes interface elements)
• Observer watches and records actions

Pros and Cons

• Inexpensive: Easy and fast to create

• Provide high-level feedback: Useful for testing overall flow, structure, and dynamic of the interface

• Trigger user reactions: Help uncover user expectations and issues

• Might be inaccurate: Does not reflect actual system speed or responsiveness

• Human error: Human-as-computer may unintentionally interfere with the user's experience

• Design changes are cumbersome: repetitive earsing and drawing

• Doesn't scale well: Humans struggle to manually keep up with fast transitions across hundreds of screens

Sketches

• Drawing of the outward appearance of the intended system.
• Should be rough and crude! Crudity helps people concentrate on high level concepts.
• Harder to test complex flows or interactive behaviors.

Sketching is not about drawing!
Sketching is part of a design process:

• idea generation
• design elaboration
• design choices
• engineering

Sketching can help you:

• express and develop ideas
• visualize and think through ideas
• record and archive ideas that you come across
• communicate (reflect, share, critique, decide) ideas

Getting the right design vs. getting the design right

• Getting the Right Design
  • Generate many ideas
  • Focus on what to solve
  • Explore different directions
  • Think broadly and creatively
• Getting the Design Right
  • Polish a chosen idea
  • Focus on how to solve it
  • Improve usability and aesthetics
  • Test, refine, and finalize

1. Elaborate(Getting the right design) - generate many ideas and variations
2. Reduce(Getting the design right) - decide on the ones worth pursuing
3. Repeat until you get the best idea!

Wizard of OZ (originally OZ Paradigm)

Experimenter (the wizard) simulates the behavior of a theoreticla intelligent computer application in a laboratory without the system actually being built.

We can test a system that does not exist!
Users don't know that someone is faking all the responses.
In an iterative design process, the wizard can be replaced step-by-step with real algorithms.

Medium-Fidelity Prototypes

Use prototyping tools! (e.g. Figma, Sketch, Javascript)

• Vertical prototype: provide answer about a specific question
  • includes in-depth functionality for only a few selected features
  • Good for performance comparison or usability tests
• Horizontal prototype: provide full interface without the functionality
  • Simulates the entire interface layout, but with no real functionality
  • Great for testing structure or layout
• Scenario prototype: pre-scripted walkthrough for specific task
  • Rigid: no deviation allowed
  • Useful for simulating a user journey

Pros and Cons

• Time consuming: requires more effort than low-fidelity sketches or paper prototypes.
  • However CSE students may think that coding is better than papers...
• Beware of misaligned expectations
  • Developer might resist changes once effort has been spent
  • Management or stakeholders might mistake the prototype for the final product
• Stay focused on function over form
  • Do not get distracted by too small detail
  • e.g. Don't waste time debating fonts or colors at this stage

High-Fidelity Prototypes

• Piecewise prototype

  • Built in horizontal, vertical, or scenario-based slices.
  • Can be tested in a controlled, lab-like setting.

• Alpha and Beta releases

  • Distributed to small groups for real-world testing
  • Gather feedback before full-scale release

• Requires monitoring help lines or sales/support teams for post-deployment feedback

• Expensive to change: mistakes at this stage are costly!

• Problem can be deeply rooted in the software architecture.

Alternative classification

• Concept prototyping: develop and evaluate preliminary design ideas
  • Concept sketches and storyboards
  • Artificial reality problem: Designs by a good artist or modeler look like they will work. You should be terrible at drawing!!
• Rapid(throw-it-away) prototyping: explore and test functionalities and performances
  • e.g., New automobile design in wind tunnels
  • Scaling fallacy problem: Success in rapid prototype doesn't always mean success in full-scale model.
• Evolutionary prototyping (Incremental prototyping): used when design specs are uncertain or changing
  • The average programmer's day in the life
  • Often glorified as an iterative process (design → evaluation → refine)
  • Software developers using the facilities for actual product development
  • Designers tend to get tunnel vision, not exploring design alternatives
